⚡ Ignite your drive with precision and power!

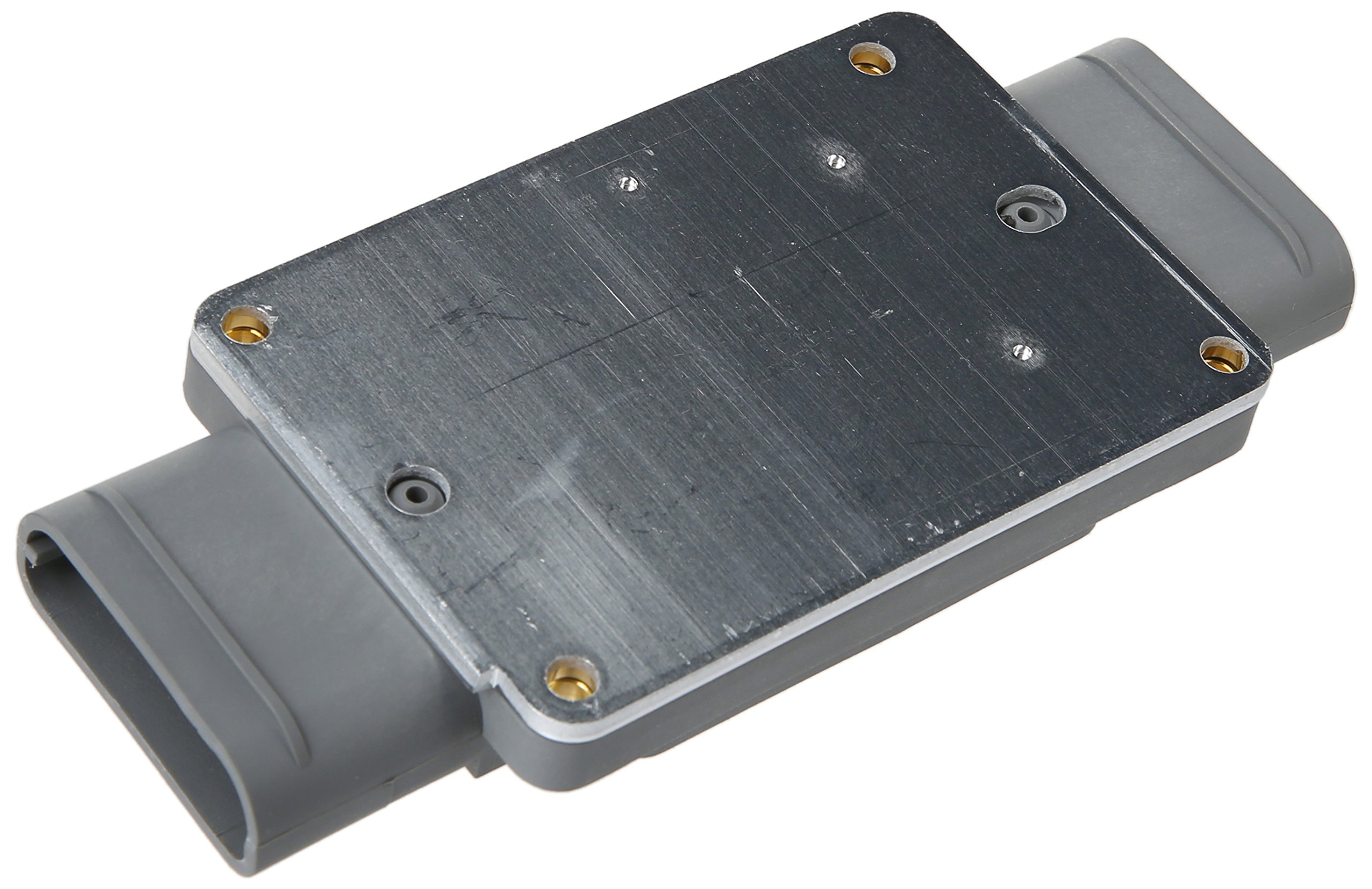

The Standard Motor Products LX230 Ignition Control Module is a compact, lightweight, and durable automotive component designed to deliver reliable ignition performance. Featuring a machined exterior and engineered by a trusted manufacturer, it ensures consistent engine starts and long-lasting operation.
Manufacturer | Standard |
Brand | Standard Motor Products |
Model | Ignition Control Module |
Item Weight | 7.6 ounces |
Product Dimensions | 3 x 3 x 8 inches |
Item model number | LX230 |
Is Discontinued By Manufacturer | No |
Exterior | Machined |
Manufacturer Part Number | LX230 |
D**.
Great part, stopped the bogging, backfiring and no-start!
Finally, this part did the trick and got my truck running right!!!{Remember when installing this to ground it properly and use heat sink compound, not dielectric grease}This was installed on a 1991 2WD Ranger with the 2.3L eight-plug engine. I bought the truck about a year or so ago, and I do not drive it much, as I work from home. When I started driving the truck, every once in a while, it would bog down like it was not getting enough fuel.I drove it like that for several months, while piddling around trying to figure out the source of the problem as I had the time and the money. Eventually the problem started getting worse, with it backfiring often on startup, and sometimes it would stall out completely while driving.This truck had a lot of other problems that masked what was going on. It had rodent-chewed wires, vacuum line leaks, intermittent inertia switch, one bad plug wire, two swapped plug wires, carbon tracking on one coil. It also had a bad gas gauge, common on these vehicles, which always made me unsure of the actual fuel level.I replaced the fuel pump assembly, in case the pump was on its way out and to repair the gauge. Put new plugs and wires on it, repaired the vacuum leaks, repaired the wires, jumped the inertia leads and popped in a new fuel filer, plus changed the oil.. Figured these were all tune up items anyway, which it needed, so no waste there. After, the problem remained, and got to the point where the truck was unreliable, I did some research and found out how to pull the codes.I realized there is no check engine light on this, and used a test light to pull the codes. Codes showed a bad coil pack, and the carbon tracking was evidence of that. Coils tested OK, pretty close to spec, on an ohm meter, but I found these:ENA Set of 2 New Ignition Coils for Ford Lincoln Mercury Compatible with C924 Fd487 Fd480 490 F510 5c1117 178-8222 E96 52-1967At that price, I decided to swap them, and that would leave me with a spare. (The coils work great! Good quality for the price)The code for the coil returned. I happened to find mention in a mustang forum about a tachometer not operating properly on a 2.3l, and that the signal comes from the ignition module. The tach has never worked in this truck. Upon further research, a video on youtube showed how an intermittent ignition module can go into a "Limp Home" mode periodically, where it retards the timing.This can cause a loss of power, bogging, backfiring, no-starts, and other problems, including loss of tach.So I replaced the module, with this L230, and as soon as I started it up, I knew the truck was fixed. It has more power than it ever has had, and it runs like a scalded ape.Before, if I did not feather the clutch in first or reverse and add a lot of throttle, the truck would stall. Now, I can release the clutch, even without gas, and it will take off like a shot. On the roads, there is so much power that the back wheels like to come loose on the curves with thrttle, so I have had to alter my driving habits.When installing this be sure to ground it properly. The top left hole is technically the one that is supposed to handle the ground, but on my truck, there was no hole tapped in that location, nor any bolt in that location on the original module. The new module explicitly says the the top left is supposed to be grounded with the bolt.After doing some checking online, and confirming it with the multi-meter, both the left side holes can be used for ground. The right side holes will NOT ground the module. I went ahead and put a wire in the top left hole anyway, connected it to the bottom left bolt, and, just for the heck of it, I ran a wire to a motor ground, just to be sure. Just a bolt in the lower left should be enough to ground it properly, however.When installing this, be sure to use heat sink compound, like the stuff used for installing processors on computers. Put a thin layer on the rear of the module, where it will contact the air intake. Some of the shop manuals say to use dielectric grease, which WILL NOT work. It does not transfer heat to the intake properly,allowing the module to overheat, and it breaks down quickly. Heat sink compound is permanent and will cool the module properly.
C**.
1994 Ford Ranger 2.3L 5 speed
Fit on my 1994 ford ranger 2.3L 5 speed manual.Truck runs great now.I believe my old issue was actually a grounding problem with the old unit.If you are reading this try removing the OEM one and cleaning the surface behind it and on the module itself.I learned it uses the back of the module as a ground
W**R
This seems to be working fine.
I purchased a lx230t module that failed after 1 week. This seems to be working fine.
B**E
Works in a pinch
I purchased this for a 1995 Ford Ranger 2.3L after discovering that Motorcraft no longer makes it. The PCM was producing codes 223 and 224 with a check engine light and half of the passenger side coil not firing with a check engine light. Come to find out that the screws that secure the left side of the module also ground it and the heads were corroded off of mine. After much cursing I got what was left of the old screws out and mounted the new one. You'll need new 4mm x .75 screws about an inch long to complete the job as well. It fixed all of my issues and soon realized that the power of the engine is greatly increased.
L**Y
Working thus far
Shouldve done this a long time ago.
F**Y
1994 Ford Ranger 2.3L
My truck just died suddenly and I narrowed it down to either failure of the ignition moduleor the crankshaft position sensor. Well, it ended up being the crankshaft position sensorthat had failed, (Foreign object damage, Magnet broken off,) However I'm glad I replaced theignition module as well because this truck now runs like new!This engine has the dual plug head and I think it may have only been firing on one bank ofspark plugs. This vehicle has over 250,000 miles on it so I think many of the electrical componentsare starting to fail. I replaced the entire engine, (rebuilt long block,) back in 2006 because of lowcompression and it wouldn't pass smog inspection but replacing the ignition module made a muchmore dramatic improvement in overall engine performance.Easier starting, smoother idle, better fuel economy, More power when you put your foot in it.I'll be purchasing more Standard Motor Products components in the future as needed.
E**N
Buen producto
Mi ford ranger no tenia chispa en dos de los postes de una de las bobinas, por ende no tenía fuerza y no emparejaba la aceleracion, solo fue instalar el modulo nuevo y se acabaron los problemas
D**H
First part died
First part I ordered worked for about 5 miles, then left me stranded and $80.00 poorer with tow bill. Amazon replaced the part for free and new part is working great for the last week, so far, so good.
