Description

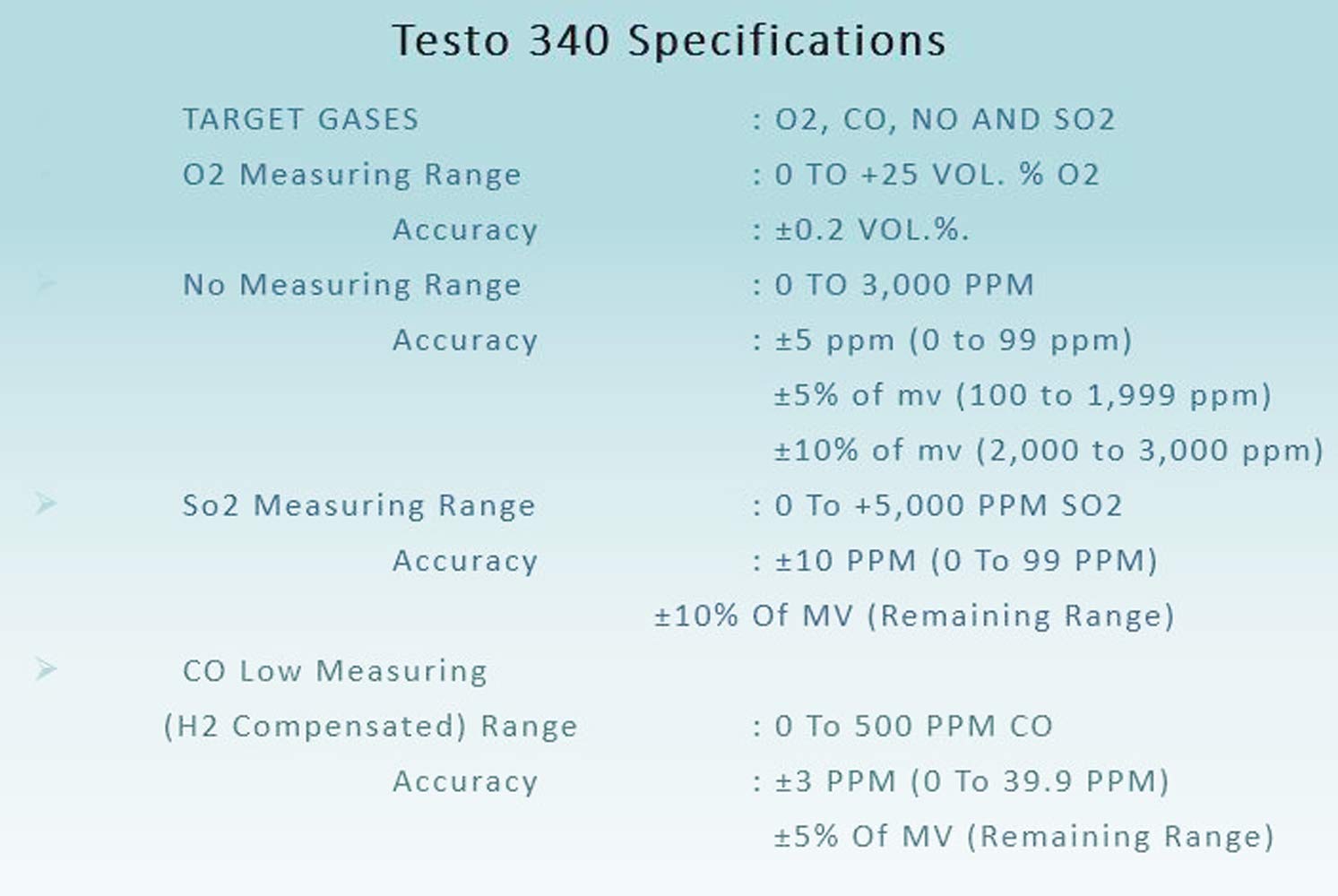

- Differential Pressure: -200 to 200 hPa; Absolute Pressure: +600 to +1150 hPa; Flue gas O2: 0 to 25 Vol%; Flue gas CO (with H2-compensation): 0 to 10000 ppm; Flue gas NO2: 0 to 4000 ppm; Flue gas: 0 to 300 ppm; Flue gas NO2: 0 to 500 ppm; Flue gas SO: 0 to 5000 ppm Flue gas Draught: -40 to +40 hPa
- Display size: 160 x 240 pixels; Flue gas degree of effectivity, Eta (calculated): 0 to 120%; Flue gas loss (calculated): 0 to 99.9%; Flue gas dewpoint (calculated): 0 to 99.9°C td; Flue gas CO calculation (calculated from O): 0 to CO max
- Operating temperature: -5 to +50°C, Storage Temperature: -40 to +1200°C; Housing: TPE PC; Protection class: IP40
- Power supply: Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A; User defined fuels: 10 user-defined fuels includes test gas as fuel; Max. neg. press./flue gas: -200 mbar; max. pos. press./flue gas: 50 mbar
The flue gas analyzer has an extended measuring range which allows you to carry out measurements even when gas concentrations are very high (i.e. during industrial flue gas analysis). The extended measuring range (thinning) is activated automatically when high gas concentrations suddenly occur. The demands on the sensor are no different to than when the flue gas analyzer is used in low gas concentrations.
